Item No. |
LS00265 |

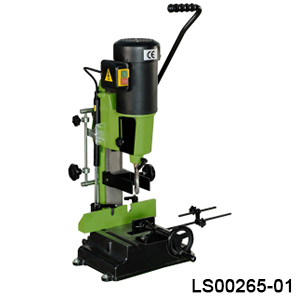

LS00265-01 |

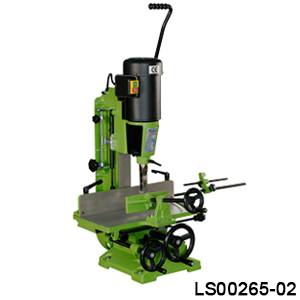

LS00265-02 |

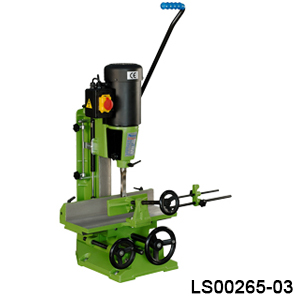

LS00265-03 |
|
Chisel capacity |
6-19 mm
(1/4"~3/4") |
6-16 mm
(1/4"~5/8") |
6-25 mm
(1/4"~1") |
6-25 mm
(1/4"~1") |
|
Max chisel stroke |
153 mm (6") |
228 mm (9") |
200 mm (9") |
150 mm (6") |
Distancem
(from fence to center chisel) |
70 mm (2-3/4")
|
76 mm (3") |
Distance
(from center chisel to table) |
170 mm (6-1/2") |
259 mm
(10-3/16") |
203 mm
(8") |
|
Chuck capacity |
13 mm (1/2") |
|
Speed of spindle |
50 Hz / 2850 rpm
60 Hz / 1720 rpm
|
|
Size of table |
200 x 450 mm
(8" x 18") |
216 x 200 mm
(8.5" x 7.9") |
325 x 486 mm
(12.8" x 19.13") |
200 x 450 mm
(8" x 18") |
|
Size of base |
300 x 440 mm
(12" x 17.4") |
300 x 440 mm
(12" x 17.4") |
300 x 300 mm
(12" x 12") |
300 x 440 mm
(12" x 17.4") |
|
Table longitudinal travel |
370 mm
(14-1/2") |
|
370 mm
(14-1/2") |
370 mm
(14-1/2") |
|
Table cross travel |
70 mm(2-3/4") |
|
76 mm(3") |
|
Motor |
0.75 kw
(1HP) |
0.37 kw
(1/2HP) |
0.75 kw (1HP) |
|
Overall height |
840 mm (33") |
736 mm (29") |
991 mm (39")
|
970 mm (38") |
|
Net / Gross weight |
181 lbs(82 kgs)
207 lbs(94 kgs)
|
88 lbs(40 kgs)
93 lbs(42 kgs)
|
190 lbs(86 kgs)
216 lbs(98 kgs)
|
