SPECIFICATION

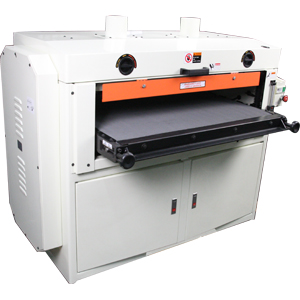

LS00251

LS00251-01

 Main motor

 3HP,1PH /

 5H.P,1PH or 3PH

 10HP,3PH /

 7.5H.P,1PH or 3PH

 Drive belt motor (A.C motor)

 1/4 H.P

 1/4 H.P

 Drum diameter, balanced steel tube, rubber  coated

 6”

 6”

 Hold down roller diameter

 1-1/2”

 1-1/2”

 Maximum sanding width

 25”

 37”

 Maximum depth per pass

 1/32”

 1/32”

 Maximum material thickness

 5-1/4”

 5-1/4”

 Minimum material thickness

 1/8”

 1/8”

 Minimum material length

 9”

 9”

 Conveyor belt speeds

 1.13 ~ 4.32 meter/min

 7 ~ 14.2 feet/min

 1.13 ~ 4.32 meter/min

 3.7 ~ 14.2 feet/min

 Sanding drum speed (50 HZ)

 2,010 FPM

 2,010 FPM

 (Drum speed , 50 HZ

 1,300 RPM)

 1,300 RPM)

 Sanding drum speed (60 HZ)

 2,410 FPM

 2,410 FPM

 (Drum speed , 60 HZ

 1,560 RPM)

 1,560 RPM)

 Dust collection port

 2 at 4”

 2 at 4”

 Approximate shipping weight

 820 LBS

1070 LBS
