PORTABLE CANISTER CYCLONE

SPECS:

Item No. LS00142 LS00142-01
Motor 3HP / 60HZ / 220V /
1-phase		 1.5HP / 110V / 220V /
1-phase or 3-phase
AMPS 18A 18A / 9A
Max. CFM 1756 CFM 883 CFM
(@ By grizzly test method)
Max. Static pressure 11.3 INH2O 9.6 INH2O
Inlet size 8" 6"
Filter surface area N/A 3.8 m²
Steel drum capacity 50 gallons 30 gallons
Noise 85 dB / 10 feet  80 dB / 10 feet
Machine size 1760 x 8350 x 1990 mm 1000 x 530 x 1720 mm
Packing size
Total: 32.7'
Box 1 - 780 x 650 x 1200 mm
             / 21.5'
Box 1 - 410 x 410 x 905 mm
             / 5.4'
150H:
Box 1 - 1005 x 510 x 450 mm
              / 8.1'
Box 2 - 440 x 440 x 720 mm
              / 4.9'
150HA: 1005 x 510 x 1050 mm
              / 19'

FEATURES:
► Ultra -high efficiency cyclonic separation:
     99% separate dust and air before the filter
     - eliminates canister filter clogging.
► Patented manual canister filter cleaning  system.
► Great combination of and portability.
► 0.2-2 micron pleated canister filter.
► Steel drum with caster for easy dust disposal.
► Optional drum lid open system for easy open  the
     drum lid and pull out the steel drum.
► Optional plastic bag holding system - makes pe bag
     well fit in steel drum.
► Optional remote control.
► It's small enought to fit in the garage, and basement.
► LS00142: At just 6.5 feet tall.
                     Optional hepa filter 0.3 micron.
                     Optional auto canister filter clanning.
► LS00142-01: At just 5.7 feet tall.

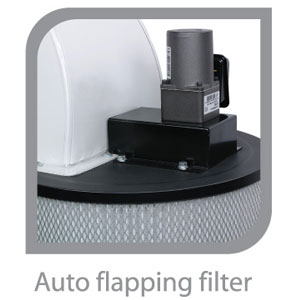

                          Optional auto flapping filter cleaning
                          system-keeps suction power not falling (150 HA).

PACKING:
► Pallet

ITEM NO QUOTATION

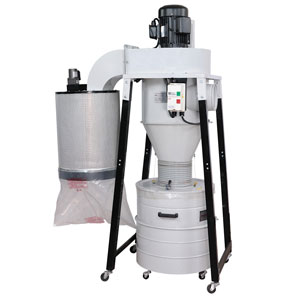

LS00142

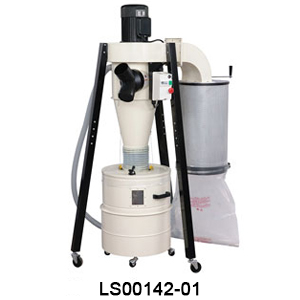

LS00142-01
