SPECS:
|
Motor: |
2HP, 1720 RPM |
|
Abrasive belt size: |
6" x 89" (152 x 2260mm) |
|
Belt speed: |
3150 F.P.M (960 M.P.M.) |
|
Front table size: |
26.3/4" x 12" |
|
Auxiliary table size: |
11.3/8" x 8.7/8" |
|
Platen tilting: |
0 T0 90° |
|
Oscillation distance: |
10mm |
|
Dust chute: |
4" x 2 |
|
Sanding drum size: |
1.1/2", 2", 3" diameter x 4.1/2"(L) |
|
Overall dimension: |
51.1/8" x 27.1/2" x 47.3/4" |
|
Packing size: |
1250 x 730 x 1070mm |
|
N.W. / G.W. / CUFT.: |
161kgs / 188kgs / 34.4' |
FEATURES:

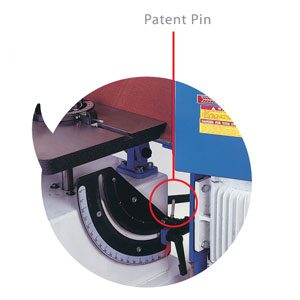

► The sanding belt could be either the horizontal or
vertical position or any angle in between 0 to 90
degree.
► 3 spindles from 1.1/2", 2" to 3" in diameter all have
threaded end for quick changes.
► The front cast iron table can be moved up and down,
beside also can be forward and backward to the
sanding plate.
► The front cast iron table can be raised with flexible
spring adjustment by hand push
PACKING:
► Wooden case
|
