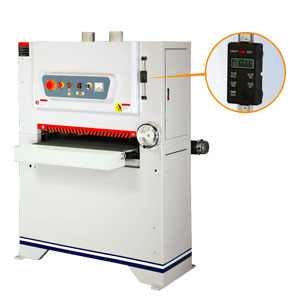

Item No. |
LS00127 |
|
Width of wide sanding belt |
30" |
|
Length of wide sanding belt |
52" |
|
Greatest tolerance of grinding object |
5" |
|
Lowest tolerance of grinding object |
1/4" |
|
Motor |
5HP |
|
Reduction tolerance of grinding object |
1/2HP
|
|
Object delivering speed |
6-30FPM |
|
Diameter of drum |
Ø6.5" |
|
Length of drum |
32" |
|
Drum speed |
50HZ-1272 RPM |
|
Drum speedy |
60HZ-1539 RPM |
|
Swing frequency per minute |
50HZ-54 RPM |
|
Swing frequency per minute |
60HZ-66 RPM |
|
Diameter of dust collector |
Ø4" |
|
Packing dimensions |
150 x 95 x 190 cm |
|
N.W. / G.W.: |
455kgs / 515kgs |
* All specifications, dimensions and design characteristics
shown are subject to change without prior notice.
FEATURES:
► Left and right swinging wide sanding belts provide
even grinding results.
► Grinding capacity reaches 30"
► Easy operation for sanding belt replacement.
► Easy operation and high safety.
► Quick-change conveyor belt.
► The machine is driven by 5 hp motor.
► Equipped with 5 hp drum motor.
► Adjustable speed for conveyor belt.
► Ampere meter is attached to the pretty, user-friendly
control panel for the operator to monitoring the
loading of the cutting operation.
► Excellent dust-collection function.
► Conveyor belt is driven by 1/2 hp motor.
► Table position scale with digital readout provides
precision information to the operator and it is easy
to read.
REMARK:
► Available also in 38" wide-belt sander
PACKING:
► Plywood case
|
