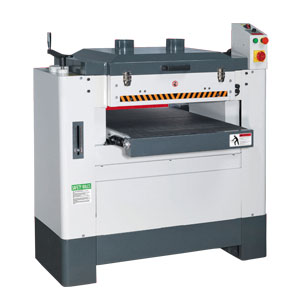

SPECS:
|
Item No. |
LS00114 |
|
Max. sanding width |
25" |
|
Max. thickness of work piece |
5"
|
|
Min. thickness of work piece |
5/16" |
|
Sanding drum speed |
430 & 860 RPM |
|
Conveyor belt speed |
6-24 FPM |
|
Sanding drum motor |
3HP x 2 |
|
Feed drive motor |
1/6 HP (DC) |
|
Sanding drum diameter |
4" |
|
Brush drum diameter |
10" |
|
Brush length |
3" |
|
Sanding belt length |
3-2/5" |
|
N.W. / G.W.: |
318.2kgs / 379.5kgs |
|
Machine dimensions |
47.5" x 37.3" x 52.9" |
|
Packing dimensions |
49.9" x 38.1" x 57.8" |
|
Voltage |
230V |
|
Number of sanding drums |
2
|
* All specifications, dimensions and design
characteristics shown are subject to change
without prior notice.
FEATURES:
► Dust chute diameter 4".
► Dual 3HP motors to drive dual drums in directions
of clockwise and anti-clockwise.
► Can be adjusted in two speeds: 430 & 860 RPM.
► Multi-ditches belt drive system.
► Easy brushes change, replace worn out brushes only.
► The conveyor belt running is operated by a key
switch.
► Conveyor belt tracking is convenient to adjust.
► High quality conveyor belt for long service life.
REMARK:
► Available also in 37" brush sander
PACKING:
► Plywood case
|
