SPECS:
► IWSS: manganese phosphate coating
► Sunk panel: all drop forged from CR-V
|

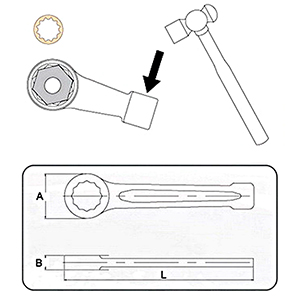

Item NO. |
Size (mm) |
L (mm) |
A (mm) |
B (mm) |
|
AS01191 |
24 |
168 |
43.4 |
14.8 |
|
AS01191-01 |
27 |
180 |
46 |
16 |
|
AS01191-02 |
30 |
190 |
51.5 |
17 |
|
AS01191-03 |
32 |
190 |
54 |
17 |
|
AS01191-04 |
36 |
205 |
58.5 |
18.5 |
|
AS01191-05 |
38 |
228 |
64.6 |
20.1 |
|
AS01191-06 |
41 |
230 |
65 |
20 |
|
AS01191-07 |
46 |
240 |
73.5 |
22 |
|
AS01191-08 |
50 |
253 |
78.5 |
24 |
|
AS01191-09 |
55 |
266 |
85 |
25 |
|
AS01191-10 |
60 |
280 |
92 |
26 |
|
AS01191-11 |
65 |
300 |
102 |
30 |
|
AS01191-12 |
70 |
330 |
110 |
33 |
|
AS01191-13 |
75 |
330 |
110 |
33 |
|
AS01191-14 |
80 |
340 |
118 |
34 |
|
AS01191-15 |
85 |
355 |
130 |
36 |
|
AS01191-16 |
90 |
390 |
142 |
39 |
|
AS01191-17 |
95 |
390 |
142 |
39 |
|
AS01191-18 |
100 |
420 |
155 |
43 |
|
AS01191-19 |
105 |
420 |
155 |
43 |
|
AS01191-20 |
110 |
450 |
168 |
45 |
|
AS01191-21 |
115 |
450 |
168 |
45 |
|
AS01191-22 |
120 |
480 |
182 |
50 |
|
AS01191-23 |
125 |
480 |
182 |
50 |
|
AS01191-24 |
130 |
510 |
194 |
57 |
|
AS01191-25 |
135 |
510 |
194 |
57 |
|
AS01191-26 |
140 |
520 |
205 |
58 |
|
AS01191-27 |
145 |
565 |
215 |
58 |
|
AS01191-28 |
150 |
565 |
215 |
58 |
|
