SPECS:
► Easy to setup and use
► Rugged, sturdy and made to last
► Versatile-use as a work top and support

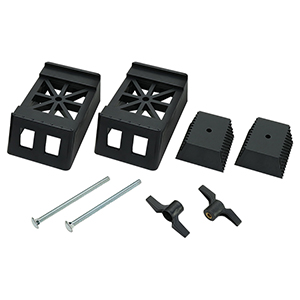

CONTENTS:
► 2 pcs - Brackets made from durable
► 2 pcs - Durable plastic wedges for securing legs
► 2 pcs - Durable plastic wing nuts with metal threads
► 2 pcs - Bolts
MANUAL ASSEMBLY INSTRUCTIONS:

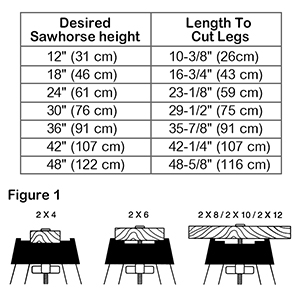

1. Select height for sawhorse:
Cut 4 wooden leg pieces for size of 2" x 4"
2. Select crosspiece:
Prepare the saw horse top piece for sizes of
2" x 4", 2" x 6" or even wider up to 2" x 8",
2" x 10" or 2" x 12"
3. Drill holes in crosspiece:
Drill through one hole 5/16" on each side and
counter bore 1/8" deep with 3/4" drill bit.
The head of bolt must be flush with top of surface.

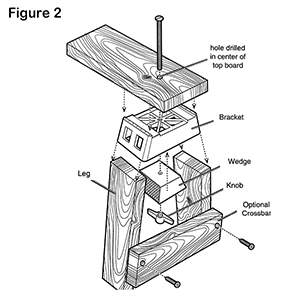

4. Insert bolts:
Put bracket on top piece and screw the bolt
through by using the center hole of bracket as a
guide point.
5. Attach legs with wedge:
Put wedge on bolt and insert the legs into
the bracket until they reach the bottom, thread
wing nut into bolt and tighten the wing
nut securely.
6. For extra stability:
Connect two legs by a cross piece 12" below bracket
to ensure the stability of stand.
|
