SPECS :
|
Item No. |
Angles |
|
DS00939 |

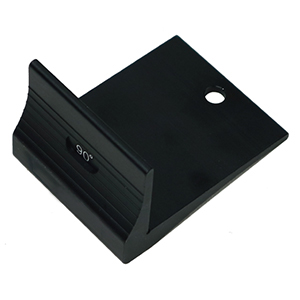

90° |
|
DS00939-01 |
1:6 |
|
DS00939-02 |
1:8 |
|
DS00939-03 |
14° |
|
DS00939-04 |
45° |
FEATURES :
► For quick, accurate marking of dovetails, a dovetail
marker is the best tool available

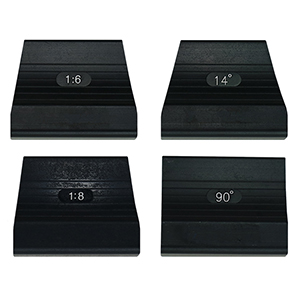

► The dovetail saddle markers are precision
machined at 1:6 and 1:8 angles, the traditional angles
for softwood and hardwood dovetails respectively.
The new 14° marker is designed to approximate a 1:4
ratio, for those who prefer this angle when working in
thinner stock, as it not only provides stronger material
interlock than traditional ratio angles but produces a
slightly exaggerated dovetail joint that many find
attractive

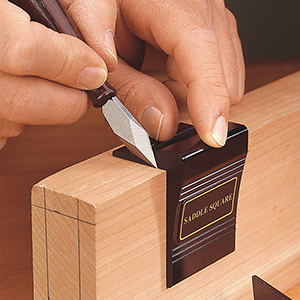

► The long legs ensure accurate registration. Also, much
like the saddle square they are based on, they
allow a continuous line to be transferred around the
corner, so the straight and angled lines can be scribed
at the same time, ensuring perfect alignment. The
inside corner is relieved to ensure flush seating even
on saw whiskers
► Made from anodised aluminium, these markers are
light and durable, and will never mark your work
|
