SPECS:
► Band width: 1/2" (12.7mm)
► Band thickness: 0.024" (0.6mm)
► Hex. head screw: 5/16" (7.9mm)
► Material: 430 stainless steel band, with carbon steel screw
► installation torque: 4.0 Nm (35 in-lbs)

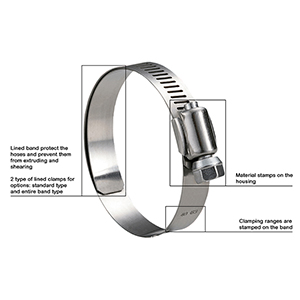

► 2 type of lined clamps for options: standard type and
entire type
► Under RoHS & REACH standard
|
Item No. |
Sae size |
Min |
Max |
|
IS01052 |
12 |
7/8" |
23 mm |
1-1/8" |
29 mm |
|
IS01052-01 |
16 |
1" |
26 mm |
1-3/8" |
35 mm |
|
IS01052-02 |
20 |
1-1/8" |
29 mm |
1-5/8" |
41 mm |
|
IS01052-03 |
24 |
1-1/4" |
32 mm |
1-15/16" |
49 mm |
|
IS01052-04 |
28 |
1-5/16" |
34 mm |
2-1/4" |
57 mm |
|
IS01052-05 |
32 |
1-9/16" |
40 mm |
2-1/2" |
63 mm |
|
IS01052-06 |
36 |
1-13/16" |
46 mm |
2-3/4" |
70 mm |
|
IS01052-07 |
40 |
2-1/16" |
52 mm |
3" |
76 mm |
|
IS01052-08 |
44 |
2-5/16" |
59 mm |
3-1/4" |
82 mm |
|
IS01052-09 |
48 |
2-9/16" |
65 mm |
3-1/2" |
89 mm |
|
IS01052-10 |
52 |
2-13/16" |
72 mm |
3-3/4" |
95 mm |
|
IS01052-11 |
56 |
3-1/6" |
78 mm |
4" |
102 mm |
|
IS01052-12 |
64 |
3-9/16" |
91 mm |
4-1/2" |
114 mm |
|
IS01052-13 |
72 |
3-1/16" |
103 mm |
5" |
127 mm |
|
