SPECS:
► Band width: 6.5mm
► Band thickness: 0.5mm
► Hex. head screw: 5 mm
► Material: W2 (430 stainless steel)
► Installation torque: 1.0 Nm (9 in-lbs)

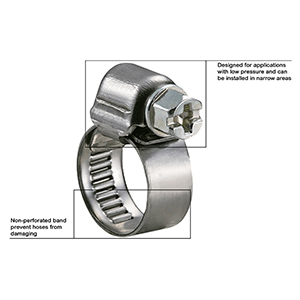

► Non-perforated band prevent hoses from
damaging during installation
► Meeting the DIN 3017 standard
► Under RoHS & REACH standard
|
Item No. |
Band width |
Min |
Max |
|
IS01051 |
6.5 mm |
9/32" |
7 mm |
7/16" |
11 mm |
|
IS01051-01 |
11/32" |
9 mm |
9/16" |
14 mm |
|
IS01051-02 |
3/8" |
10 mm |
3/4" |
19 mm |
|
