SPECS :

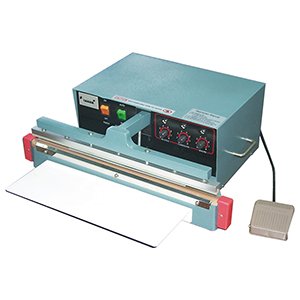

►This sealer is designed for the continuous sealing of
thermoplastic films such as polyethylene and polypropylene.
►Controlled by a plug-in transistorized circuit board, electronic.
timers and the uniform pressure provided by an electromagnet.
►These models eliminate operator error in the sealing operation.
►Once the correct control settings have been programmed,
consistent seals are maintained automatically, making the last
seal as perfect as the first.
►The automatic sealer is ideal for sealing operations in
packaging candies, food, stationery, drugs, tools,
replacement parts and a variety of other products.
►Includes an electric foot pedal for manual operation.
|
Model |
Sealing Length
|
Max. Seal Thickness |
Seal Width |
Watts |
Weight |
|
NS00058
|
350 mm |
2 x 0.15 mm |
2 mm |
600 W |
20 kgs |
|
NS00058-01
|
350 mm |
2 x 0.15 mm |
5 mm |
1000 W |
21 kgs |
|
NS00058-02
|
350 mm |
2 x 0.15 mm |
10 mm |
1100 W |
22 kgs |
|
NS00058-03
|
450 mm |
2 x 0.15 mm |
2 mm |
700 W |
21 kgs |
|
NS00058-04
|
450 mm |
2 x 0.15 mm |
5 mm |
1200 W |
22 kgs |
|
NS00058-05
|
450 mm |
2 x 0.15 mm |
10 mm |
1500 W |
23 kgs |
|
NS00058-06
|
600 mm |
2 x 0.15 mm |
2 mm |
900 W |
22 kgs |
|
NS00058-07
|
600 mm |
2 x 0.15 mm |
5 mm |
1500 W |
23 kgs |
|
NS00058-08
|
600 mm |
2 x 0.15 mm |
10 mm |
1900 W |
24 kgs |
|
