New products

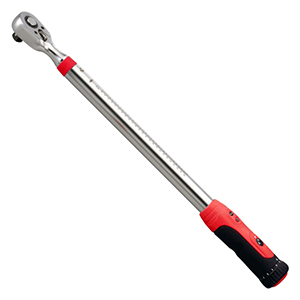

SCREEN TORQUE WRENCH
SPECS:
Meterial: CR-V
Surface finish: Matted
Teeth of gear: 48

item NO.

Torque

range

Square

Drive

Fine

scale

Length

(mm)

 Width Lf Weight
IS00892 5-25N.m 1/4" 0.1N.m 323 23 248 760
IS00892-01 5-25N.m 3/8" 0.1N.m 323 23 248 765
IS00892-02 10-50N.m 3/8" 0.5N.m 400 32 325 983
IS00892-03 20-100N.m 3/8" 0.5N.m 400 32 325 988
IS00892-04 20-100N.m 1/2" 0.5N.m 400 32 325 998
IS00892-05 40-200N.m 1/2" 0.5N.m 517 42 442 1360
IS00892-06 60-340N.m 1/2" 1N.m 620 42 545 1730
IS00892-07 60-340N.m 3/4" 1N.m 620 42 545 1784
IS00892-08 110-550N.m 3/4" 2N.m 918 58 790 4528
IS00892-09 150-750N.m 3/4" 2.5N.m 1210 58 995 5850
IS00892-10 150-750N.m 1" 2.5N.m 1210 58 995 6168
IS00892-11 200-1000N.m 3/4" 2.5N.m 1500 67 1160 7108
IS00892-12 200-1000N.m 1" 2.5N.m 1500 67 1160 7426

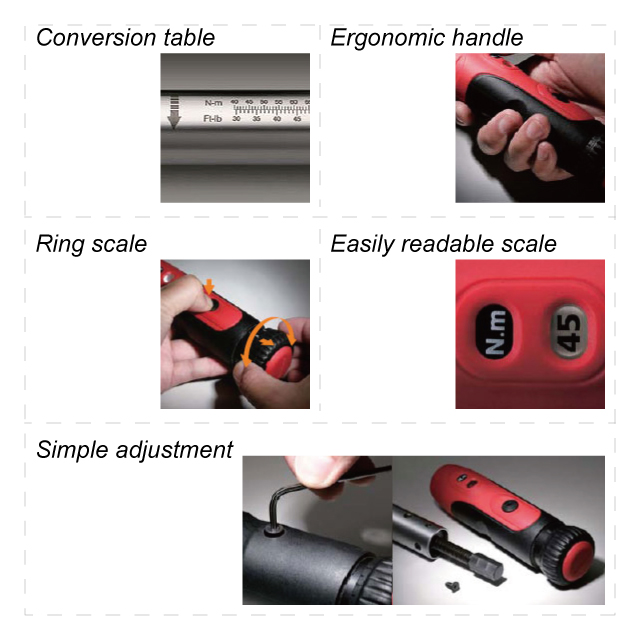

FEATURES:
► A print-on conversion table for quick reference
► Ergonomic handle and unique texture prevents fatigues
► Turn knob for accurate and easy adjusting the scale. Unique design grip
     prevents slipping when turning
► Convex lens enlarges the scale reading. NO more misreading
► It can be fast easily adjusted with tester from loosening screw and drawing
     out the grip

ITEM NO QUOTATION
IS00892
IS00892-01
IS00892-02
IS00892-03
IS00892-04
IS00892-05
IS00892-06
IS00892-07
IS00892-08
IS00892-09
IS00892-10
IS00892-11
IS00892-12
