SPECS:

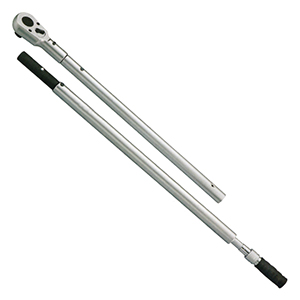

► When in use, these two tubes must be assembled together
► Quick release button design.Push the button to release socket
|
item NO. |
Square
driver
|
Range |
Scale |
L(mm) |
Weight(kg) |
|
IS00879 |
1/4" |
1-5Nm |
0.05Nm |
200 |
0.36 |
|
IS00879-01 |
1/4" |
6-30Nm |
0.2Nm |
257 |
0.44 |
|
IS00879-02 |
3/8" |
20-110Nm |
0.5Nm |
436 |
1.12 |
|
IS00879-03 |
1/2" |
40-210Nm |
1Nm |
497 |
1.47 |
|
IS00879-04 |
1/2" |
70-350Nm |
1Nm |
560 |
1.62 |
|
IS00879-05 |
3/4" |
70-450Nm |
2.5Nm |
815 |
3.30 |
|
IS00879-06 |
3/4" |
100-800Nm |
5Nm |
1000 |
7.08 |
|
IS00879-07 |
3/4" |
300-1500Nm |
10Nm |
1740 |
11.8 |
|
IS00879-08 |
1" |
300-1500Nm |
10Nm |
1740 |
11.8 |
|
IS00879-09 |
1" |
400-2000Nm |
10Nm |
2176 |
13.0 |
|
