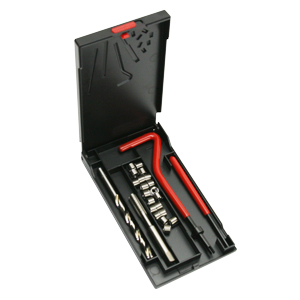

24Pcs Threaded Coil-Insert Repair Kit |
|
Item NO. |
Main Tool |
Screw-Coil |
Tap |
Drill
(mm)
|
Tang
Puncher
|
|
JS00669 |
M3 x 0.5 |
M3 x 0.5 x 1.5D(L4.5mm)-20pcs |
M3 x 0.5 |
3.2 |
M3 x 0.5 |
|
JS00669-01 |
M4 x 0.7 |
M4 x 0.7 x 1.5D(L6mm)-20pcs |
M4 x 0.7 |
4.2 |
M4 x 0.7 |
|
JS00669-02 |
M5 x 0.8 |
M5 x 0.8 x 1.5D(L7.5mm)-20pcs |
M5 x 0.8 |
5.2 |
M5 x 0.8 |
|
JS00669-03 |
M6 x 1.0 |
M6 x 1.0 x 1.5D(L9mm)-20pcs |
M6 x 1.0 |
6.3 |
M6 x 1.0 |
|
JS00669-04 |
M7 x 1.0 |
M7 x 1.0 x 1.5D(L10.5mm)-20pcs |
M7 x 1.0 |
7.3 |
M7 x 1.0 |
|
JS00669-05 |
M8 x 1.25 |
M8 x 1.25 x 1.5D(L12mm)-20pcs |
M8 x 1.25 |
8.3 |
M8 x 1.25 |
|
19Pcs Threaded Coil-Insert Repair Kit |
|
Item NO. |
Main Tool |
Screw-Coil |
Tap |
Drill
(mm)
|
Tang
Puncher
|
|
JS00669-06 |
M9 x 1.25 |
M9 x 1.25 x 1.5D(L13.5mm)-15pcs |
M9 x 1.25 |
9.3 |
M9 x 1.25 |
|
JS00669-07 |
M10 x 1.0 |
M10 x 1.0 x 1.5D(L15mm)-15pcs |
M10 x 1.0 |
10.4 |
M10 x 1.0 |
|
JS00669-08 |
M10 x 1.25 |
M10 x 1.25 x 1.5D(L15mm)-15pcs |
M10 x 1.25 |
10.4 |
M10 x 1.25 |
|
JS00669-09 |
M10 x 1.5 |
M10 x 1.5 x 1.5D(L15mm)-15pcs |
M10 x 1.5 |
10.4 |
M10 x 1.5 |
|
14Pcs Threaded Coil-Insert Repair Kit |
|
Item NO. |
Main Tool |
Screw-Coil |
Tap |
Drill
(mm)
|
Tang
Puncher
|
|
JS00669-10 |
M11 x 1.5 |
M11 x 1.5 x 1.5D(L16.5mm)-10pcs |
M11 x 1.5 |
11.4 |
M11 x 1.5 |
|
JS00669-11 |
M12 x 1.25 |
M12 x 1.25 x 1.5D(L18mm)-10pcs |
M12 x 1.25 |
12.4 |
M12 x 1.25 |
|
JS00669-12 |
M12 x 1.5 |
M12 x 1.5 x 1.5D(L18mm)-10pcs |
M12 x 1.5 |
12.4 |
M12 x 1.5 |
|
JS00669-13 |
M12 x 1.75 |
M12 x 1.75 x 1.5D(L18mm)-10pcs |
M12 x 1.75 |
12.4 |
M12 x 1.75 |
|
12Pcs Threaded Coil-Insert Repair Kit |
|
Item NO. |
Main Tool |
Screw-Coil |
Tap |
Drill
(mm)
|
Tang
Puncher
|
|
JS00669-14 |
M14 x 1.25 |
M14 x 1.25 x L20mm-10pcs |
M14 x 1.25 |
X |
X |
|
JS00669-15 |
M14 x 1.5 |
M14 x 1.5 x 1.5D(L21mm)-10pcs |
M14 x 1.5 |
X |
X |
