SPECS:
► Load capacity: 150 kgs
► Material: glass fiber
► Color: yellow
► Certification: SGS EN131: HL90328/2008
SGS Material test: TV-08-01364X
|
Item No. |
Step
no. |
Closed
height |
Open
height |
Bottom
width |
Bottom
depth |
Approx.
weight (kg) |
|
GS00403 |
3+1 |
1010 |
955 |
440 |
760 |
5.35 |
|
GS00403-01 |
4+1 |
1255 |
1175 |
480 |
905 |
6.7 |
|
GS00403-02 |
5+1 |
1515 |
1410 |
500 |
1115 |
7.9 |
|
GS00403-03 |
6+1 |
1750 |
1645 |
540 |
1260 |
9.16 |
|
GS00403-04 |
7+1 |
2005 |
1880 |
570 |
1430 |
10.34 |
|
GS00403-05 |
8+1 |
2250 |
2110 |
600 |
1605 |
11.36 |
|
GS00403-06 |
9+1 |
2505 |
2340 |
630 |
1770 |
13 |
FEATURES:
► Durable non-conductive "C" channel side rails in high
visibility safety yellow

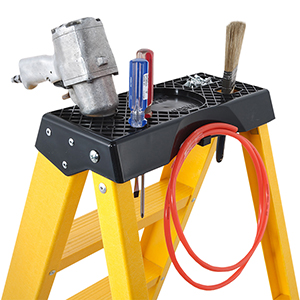

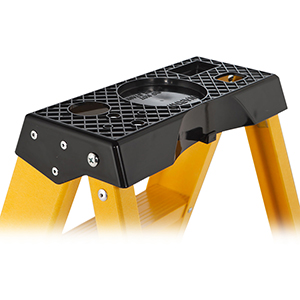

► Super tough copolymer top for strength and durability

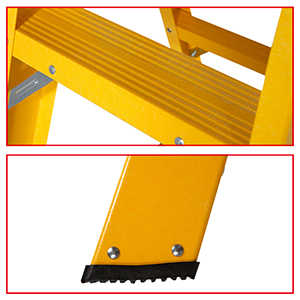

► Wide 80mm slip-resistant serrated aluminum steps for
safe climbing
► Inside spreader arms complete with “wrap-around” sleeves
that strengthen spreader-to-rail connection and protect
spreader arms during storage/loading/transit
► Rear horizontal struts every 500mm, Top and bottom struts
reinforced with Zinc coated steel diagonal braces
► Reinforced with Zinc coated steel diagonal braces at
bottom steps
► Extra-large PVC rubber safety boots are heavy-duty and
provide rail protection and slip-resistance
|
